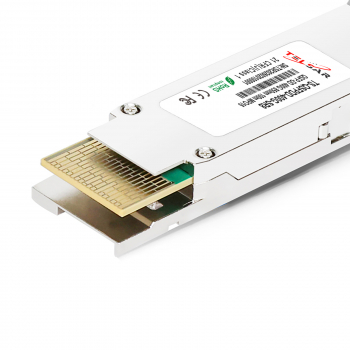

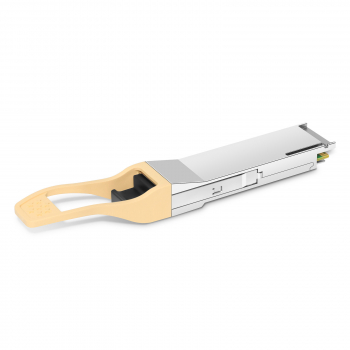

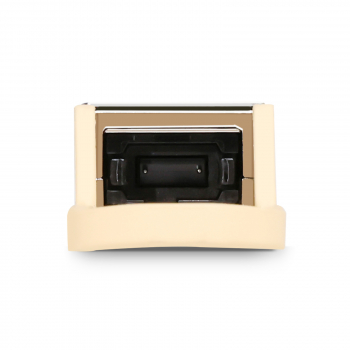

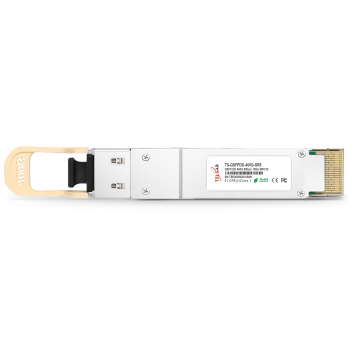

Оптический модуль TS-QSFPDD-400G-FR4 TELSAR разработан для применения в системах оптической связи на расстояниях до 2 км. Преобразует 8 каналов входных электрических данных со скоростью 50Gb/s (PAM4) в 4 канала оптических сигналов CWDM и мультиплексирует их в один канал для оптической передачи на скорости 400Gb/s.
На стороне приемника модуль осуществляет оптическое демультиплексирование входного оптического сигнала 400Gb/s на 4 канала оптических сигналов CWDM и преобразует их в 8 каналов выходных электрических данных со скоростью 50Gb/s (PAM4).
Центральные длины волн 4 каналов CWDM составляют 1271, 1291, 1311 и 1331 нм, являясь элементами сетки длин волн CWDM, определенной в стандарте ITU-T G.694.2.
Для обеспечения передачи по волокну на расстояние до 2 км требуется поддержка Host FEC (упреждающей коррекции ошибок на стороне хоста).
Absolute Maximum Ratings
|
Parameter |
Symbol |
Unit |
Min |
Max |
|
Storage Temperature Range |
TSTG |
-40 |
+85 |
⁰C |
|
Supply Voltage |
VCC |
0 |
4 |
V |
|
Relative Humidity |
RH |
10% to 90% non-condensing |
||
Operating Conditions
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Case Temperature- Operating |
TCASE |
0 |
70 |
⁰C |
|
Supply Voltage |
Vcc |
3.14 |
3.46 |
V |
|
Power Consumption |
PDISS |
|
9 |
W |
|
Pre-FEC Bit Error Ratio |
|
|
2.4x10-4 |
|
|
Link Distance |
|
|
2000 |
M |
Wavelength Lane Assignments
|
Transmitter Parameter |
Lane |
Min |
Typical |
Max |
Units |
|
Lane Wavelength Range |
Lane 0 |
1264.5 |
1271 |
1277.5 |
nm |
Transmitter Optical Specifications
|
Transmitter Parameter |
Lane |
Min |
Typical |
Max |
Units |
|
LaneWavelengthRange |
Lane0 |
1264.5 |
1271 |
1277.5 |
nm |
|
Averagelaunch Power per lane |
|
-3.3 |
|
3.5 |
dBm |
|
Total Average Launch Power |
|
|
|
9.3 |
dBm |
|
Outer OpticalModulation |
|
-0.3 |
|
3.7 |
dBm |
|
Difference in launch power between any two lanes (OMAouter) |
|
|
|
4 |
dB |
|
Average Launch Power per Lane@TX Off State |
|
|
|
-20 |
dBm |
|
Launch Power in OMAouter minus TDECO, each Lane |
|
-1.7 |
|
|
dBm |
|
Transmitter and Dispersion Eye Closure for PAM4,each Lane |
|
|
|
3.4 |
dB |
|
Extinction Ratio |
|
3.5 |
|
|
dB |
|
Relative Intensity Noise(OMA) |
|
|
|
-136 |
dB/Hz |
|
Side-Mode Suppression Ration (SMSR |
|
30 |
|
|
dB |
|
Optical Return Loss Tolerance |
|
|
|
17.1 |
dB |
|
Transmitter Reflectance |
|
|
|
-26 |
dB |
|
Transmitter Output Power Monitoring Accuracy |
|
-3 |
|
3 |
dB |
|
TDECQ-10*log10[Ceq],each Lane |
|
|
|
3.4 |
dB |
|
Transmitter transition time |
|
|
|
17 |
ps |
Receiver Optical Specifications
|
Receiver Parameter |
Lane |
Min |
Typical |
Max |
Units |
|
LaneWavelengthRange |
Lane 0 |
1264.5 |
1271 |
1277.5 |
nm |
|
Damae Threshld |
|
4.5 |
|
|
dBm |
|
Average Rereive Power,each lane |
|
-7.3 |
|
3.5 |
dBm |
|
Rereiver Power,each lane(OMA) |
|
|
|
3.7 |
dBm |
|
Receiver Reflectance |
|
|
|
-26.0 |
dB |
|
Difference in receive Power between any Two Lanes(OMAm) |
|
|
|
4.1 |
dBm |
|
Rereiver Sensitivityeachlane(OMAu |
|
|
|
max[-4.6,SECQ- |
dBm |
|
Stressed Receiver Sensitivity(OMAumr),each |
|
|
|
-2.6 |
dBm |
|
Stressed Conditions for Stress Receiver Sensitivity |
|||||
|
Stressed Eye Clogre for PA,M4 ($ECOi,Lane under Test |
|
|
3.4 |
|
dB |
|
SEC0-10*logl0iCeq, lane undertest |
|
|
3.4 |
|
dB |
|
0MA,outer of eachAggressorLae |
|
|
1.5 |
|
dBm |
High Speed Electrical Specifications
|
|
Parameter |
Min |
Typical |
Max |
Units |
Notes |
||||||
|
|
Receiver electricaloutputcharacteristicsat TP4 |
|||||||||||
|
|
Signaling rateper lane |
|
26.5625 |
|
GBd |
|
||||||
|
|
AC common-modeoutput voltage(RMS) |
|
|
17.5 |
mV |
|
||||||
|
|
Differential peak-to-peak output voltage |
|
|
900 |
mV |
|
||||||
|
|
Near-end ESMW(Eye symmetry mask width) |
|
0.265 |
|
UI |
|
||||||
|
|
Near-endEye height,differentia |
70 |
|
|
mV |
|
||||||
|
|
Far-end ESMW(Eye symmetry mask width |
|
0.2 |
|
UI |
|
||||||
|
|
Far-end Eye height,differentia |
30 |
|
|
mV |
|
||||||
|
|
Far-end pre-cursorISIatio |
-4.5 |
|
2.5 |
% |
|
||||||
|
|
Differential outputreturn loss |
9.5-0.37f |
|
|
dB |
0.01-8GHz |
||||||
|
|
|
4.75-7.4log 10(f/14 |
|
|
dB |
8-19GHz |
||||||
|
|
Commonto differential mode conversion returnoss |
22-20(f/25.78) |
|
|
dB |
0.01-12.89GHz |
||||||
|
|
|
15-6log 10(f/25.78) |
|
|
dB |
12.89-19 GHz |
||||||
|
|
Differentialterminationmismatch |
|
|
10 |
% |
|
||||||
|
|
Tranitiontime(min,20%to 80%) |
9.5 |
|
|
ps |
|
||||||
|
|
DC commoN modevoltage |
-350 |
|
2850 |
mV |
|
||||||
|
Transmitter electrical input characteristicsat TP1 |
|
|||||||||||
|
Signaling ate,per lane |
|
26.5625 |
|
GBd |
|
|
||||||
|
Differential pk-pkinput voltage tolerance |
900 |
|
|
mV |
|
|
||||||
|
Differential input returnloss |
9.5-0.37f |
|
|
dB |
0.01-8 GHz |
|
||||||
|
4.75-7.4log 10(f/14 |
|
|
dB |
8-19GHz |
|
|||||||
|
Differentialto common modeinputretum loss |
22-20(f/25.78) |
|
|
dB |
0.01-12.89GHz |
|
||||||
|
15-6log 10(f/25.78 |
|
|
dB |
12.89-19 GHz |
|
|||||||
|
Differentialterminationmismatch |
|
|
10 |
% |
|
|
||||||
|
Module stressedinputtest |
Per Section |
|
|
|
|
|
||||||
|
Single-endedvoltage tolerance rane |
-0.4 |
|
3.3 |
V |
|
|
||||||
|
Common-mode voltage |
-350 |
|
2850 |
mV |
|
|
||||||
Receiver Output Power Thresholds forLoss of Signal (LOS)
|
Parameter |
Min |
Typical |
Max |
Units |
|
RX_LOS_Assert Min/Max |
-20.0 |
|
|
dBm |
|
RX_LOS_De-Assert Min/Max |
|
|
-10.3 |
dBm |
|
RX_LOS_Hysteresis |
0.5 |
|
|
dB |
Digital Diagnostic Monitoring Specifications
|
Parameters |
Unit |
Specification |
|
Temperature Monitor absolute error |
degC |
±3 |
|
Voltage Monitor absolute error |
% |
±5 |
|
I_bias Monitor absolute error |
% |
±10 |
|
Rereived Power(Rx)Monitor absolute emor |
dB |
±3.0 |
|
Transmit Power(Tx)Monitor absolute emor |
dB |
±3.0 |
| Производитель (бренд): | TELSAR |
| Применение: | Коммерческое |
| Размещение: | В слот для модулей |
| Тип: | WDM (Bi-Direction) |
| Тип волокна: | SMF (одномодовое) |
| Форм-фактор: | QSFP-DD |
| Скорость передачи данных: | 400 Гбит/с |
| Дальность передачи: | 2 км |
| Оптический бюджет: | 4 дБ |
